Standard Features | ||
- Rock solid frame made from an aluminium anodized extrusion (also available in white or black powder coated finish). - Electric height adjustment at the touch of a button. - Lifting system made by Danish based global leader. - 6 x DL12 lifting columns for adjusting the work surface height. - DL12 lifting columns feature the PIEZO hardware based anti-collision technology. This feature prevents material damage to a desk if a collision with a solid object occurs. The PIEZO sensor is integrated in the legs with no visible changes and no extra mounting. - 1 x DPT flush mount control panels for raising and lowering the work surface (three memory settings per surface). - Thrust up to 700 N (per lifting column). - Desk surface height adjustment from 633mm to 1293mm. - Raises and lowers at maximum speed of 38 mm/s. - Control boxes use ZERO technology to lower standby power consumption to just 0.1W. - Hardware cabinet for housing equipment such as computers. - Hardware cabinet ensures reduced strain on the lifting system as some equipment can remain safely stored inside the cabinet. - Access to cabinet via front and/or rear of console. Hardware cabinet example - Cable entry holes with cable covers for neatly routing cables to the work surface. - 2 x built in fans. - 1 x energy chain for safely running data cables from hardware cabinet to work surface. - 1 x energy chain for safely running power cables from hardware cabinet to work surface. Energy chains, cable entry holes and fan example |
||
Optional Features | ||
- Optional additional energy chains. - Optional instrument panel. - Optional cabinet security lock. Cabinet security lock example - Optional front padded leather surface with a radiused edge for improved comfort. Front leather padded surface example - Optional customised hardware cabinet to accommodate additional equipment with optional PC or 19inch rack pull out drawers. - Optional cabinet lighting. PC pull out drawer with cabinet lighting (left) and 19 inch rack pull out drawer (right) examples - Optional A4 and A3 Indesk document holders built into the work surface for quick access to critical and frequently required information such as schedules, phone numbers and maps. A3 Indesk document holders example - Optional custom button enclosure assembly including backlit push buttons, button housing, machine engraved back filled text and flip guard. Custom button enclosure example - Optional hardware cabinet digital LCD controller with automated thermostat and fan speed control. Additional S-Series fans can be daisy chained for added cooling. - Optional alternative control buttons. - Optional Desk Control App. The Bluetooth® Adapter and the Desk Control App (free download) enable your phone or tablet to adjust your console. Auto-connect, receive motivational notifications, and have statistics with overview to help utilise the console's adjustment function more actively – and ultimately improve work habits. Available for iOS and Android devices. It can be downloaded in the App Store, Google Play or from Microsoft. The Bluetooth® function is included with DPG1M and DPG1C control panels.
A Bluetooth® Adapter is required to use the Desk Control App when using a DPT, DPF1M or DPF1C control panels. Simply plug the Bluetooth Adapter into the DESKLINE control box and download the Linak Desk Control App. - Opional LINAK Desk Sensor™ 1 (DS1) which is an Anti-Collision™ solution that can limit material damage to a console or an object if a collision occurs during driving of the console. Detects tilting as well as both hard and soft obstacles. It comes as a small and compact plug-in unit and integrates easily with the LINAK. The DS1 is a small, compact plug-in adapter based on gyroscope technology, and it detects even a slight tilting of the console when the console is driving up or down. This system provides added protection to the PIEZO hardware based anti-collision technology that is built into the DL12 lifting columns. - Extensive range of optional accessories including; monitor mounts, control room chairs, softwiring plug-and-play power and data solutions for both the cabinet and work surface, anti-fatigue mats, task lighting, USB hubs, power and video cables, desktop monitors, asset ID tags, pedestal drawers, acoustic privacy screens, UHF radio holders, phone holders and document holders. |
||

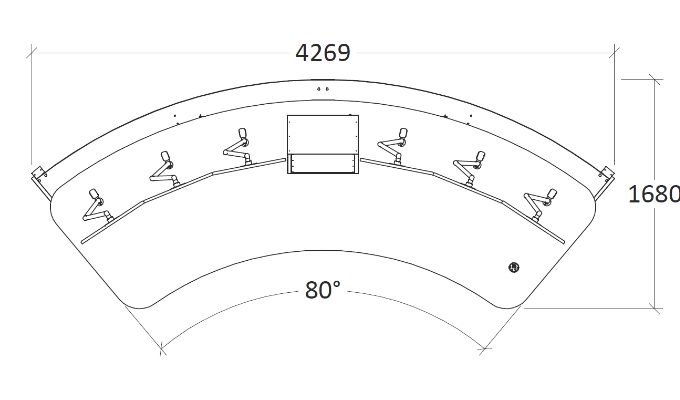

Dimensions | ||
|
||

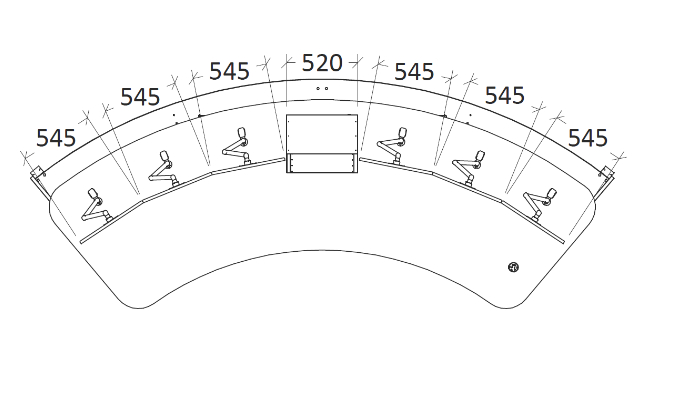

Monitor Arrangements | ||
- 7 x 24 inch monitors across 1 level or 14 x 24 inch monitors across 2 levels. |
||
Surface Finishes | ||
- Australian Laminex Decorwood/Vertiboard 25mm panels in Oyster Grey or Parchment are the standard console finishes. - Most of the finishes in the Laminex Commercial Range are also readily available (please contact us for current availability). Download the Laminex Commercial Range Brochure (PDF)- All panels are CNC routed in-house using an Australian Multicam CNC machine in addition to being edged in-house to ensure highest level of quality. |
||
Designed and manufactured in Australia | ||
All our control room consoles are designed and crafted in Melbourne Australia, from local and quality imported parts. In-house CNC routing of all panels using an Australian Multicam CNC machine in addition to edging using a specialised machine designed to work shaped (concave and/or convex) panels, ensures quality is maintained to the highest standard. For more information, please feel free to contact us. |
||
Warranty | ||
5 year warranty *Warranty covers replacement parts only, it does not cover onsite labour or freight costs. |
||
Resources | ||
Download the Linak DPT Control Panel Data Sheet (PDF)
Download the Linak DESKLINE DL12 Lifting Column Data Sheet (PDF) Download the Linak CBD6 Control Box Data Sheet (PDF) Download the Linak Controls Handsets User Manual (includes DPT, DPH, DPF1M and DPF1C) (PDF) Download the Linak DESKLINE DPG Desk panels and Desk Control App User Manual (PDF) Download the Laminex Commercial Range Brochure (PDF) |
